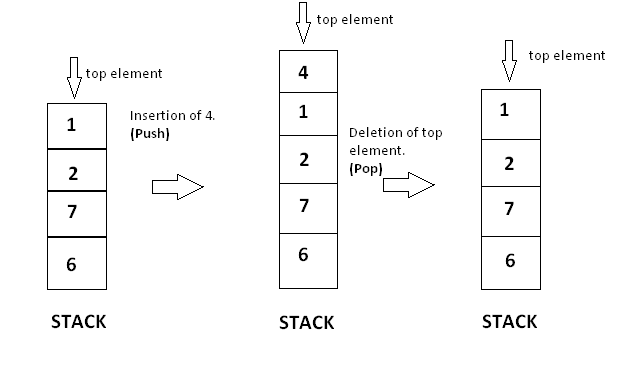

스택은 LIFO , "가장 늦게 들어간 요소가 가장 먼저나오는" 데이터 구조이다.
그럼 이 스택을 어떻게 구현할 수 있을까? 아마 첫번째로 떠오르는 것은 배열리스트 일 것이다. 동적으로 배열을 할당받는 방법도 있겠지만, '배열'의 형태로 구현할 경우 어쩔수없이 스택은 저장할 수 있는 자료에 있어서 한계가 있다.
이를 위해서는 '연결리스트'로 스택을 구현해주면 된다. 동적할당된 배열의 형태가 아니라, 연결리스트의 link 필드로, 동적 할당된 요소들을 계속해서 연결시켜주면, 우리는 길이의 제한 없이 스택을 이용할 수 있다.

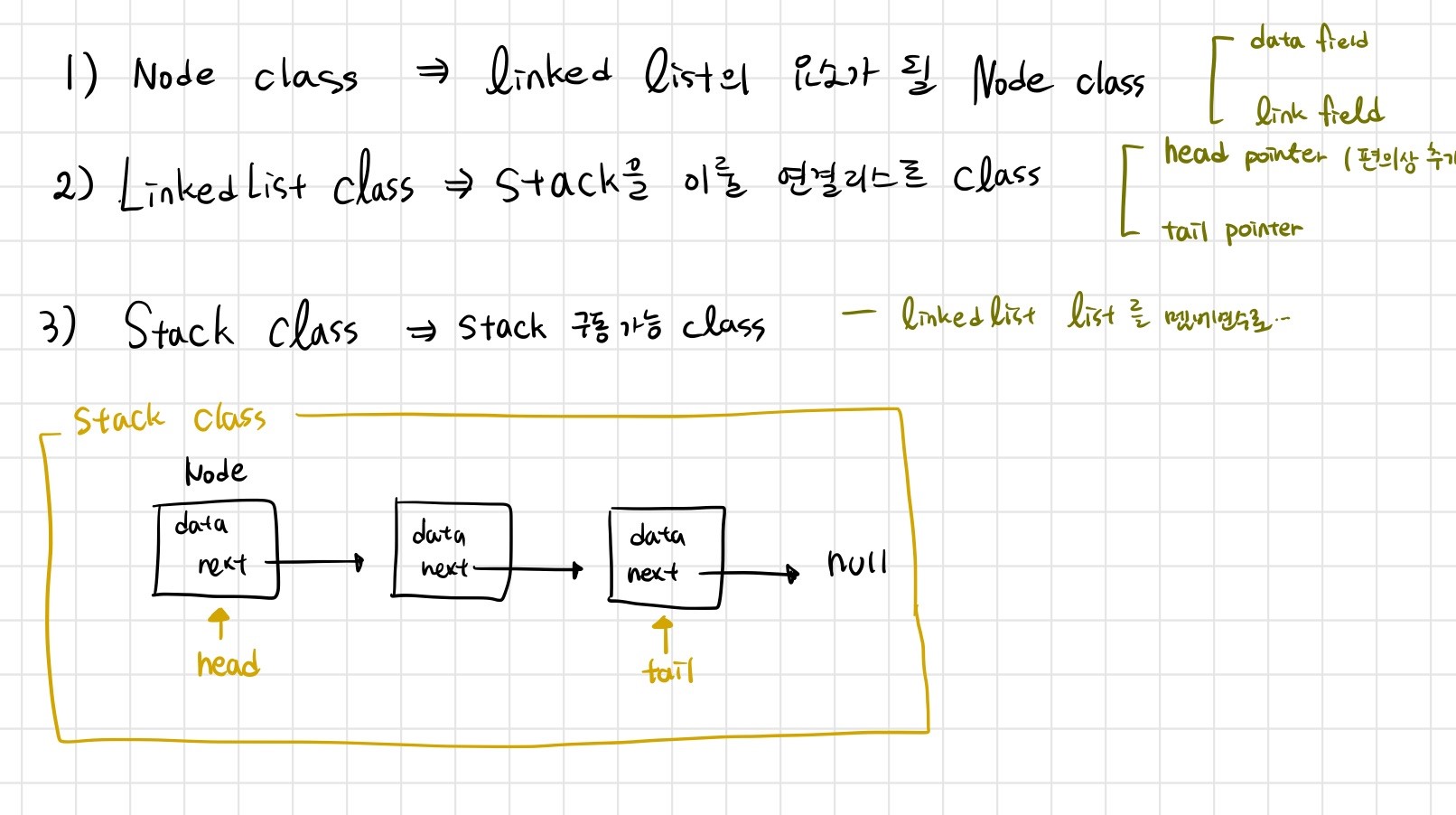

먼저 소스코드에 구현된 세가지 클래스를 설명한 이미지이다.
이 코드는 세가지의 class로 나뉜다.
1) Node Class: 스택의 'Node'가 될 요소들의 데이터와 요소들을 이어줄 link 필드가 멤버변수로 있다. 이는 구조체로 똑같이 구현해줘도 무방하다.
2) LinkedList Class : 연결리스트를 구현한 클래스이다. 멤버변수로 Node* head 와 Node*tail 그리고 int countnum을 가진다. head는 연결리스트의 정보를 처음부터 끝까지 출력하거나, 삭제할 때 사용되며, tail은 맨 마지막 노드를 가리켜, stack 기능의 핵심적 역할을 한다. top 함수에서는 tail을 이용해 마지막으로 삽입된 노드의 값을 반환하고 , pop에서는 tail을 이용해 마지막으로 삽입된 노드를 삭제한다.
3) Stack Class: LinkedList list를 멤버변수로 갖고, 각각 스택의 기능들을 함수로 갖는다. 여기서 스택의 기능들은 Linkedlist의 객체 list를 통해서 간접구현된다.
#include <iostream>
using namespace std;
//연결리스트로 스택구현하기
class Node {
public:
int num; //data field
Node* next; //link field
public:
Node() {};
};
class LinkedList {
Node* head; //head
Node* tail; //tail
int nodecount = 0;
public:
LinkedList() {
head = tail = NULL;
};
void insert(Node* n) { //스택이므로, 가장 뒤에 삽입
if (head == NULL) { //첫요소
head = n;
n->next = NULL;
}
else { tail->next = n; } //첫요소 아니라면
tail = n; //
nodecount++;
}
void remove(){ //가장 뒤에 요소를 삭제
nodecount--;
if (head ==NULL) { //스택 비었을 때
return; }
else if (head == tail) { //요소가 1개일 때
head = tail = NULL; //head, tail모두 null로 초기화
return;
}
Node* tmp = head;
while (tmp->next != tail) {
tmp = tmp->next; //tail 이전 요소가지 가기
} //tmp는 tail이 될 요소
tail = tmp; //tail변경 , tail 이전 요소로
delete tmp->next;
tmp->next = NULL; //오류 안나도록
}
int top(){ //맨 뒤 요소반환
if (head ==NULL) {
return -1;
}
return tail->num;
}
void print_list() { //display
Node* tmp = head;
for (int i = 0; i < nodecount; i++) {
cout << tmp->num << " ";
tmp = tmp->next;
}
cout << endl;
}
int get_length() { //stack 길이
return nodecount;
}
~LinkedList() {
DestroyLinkedList();
}
void DestroyLinkedList() { //소멸자
Node* tmp = head;
if (head == tail == NULL) return;
while (tmp != NULL) {
tmp = tmp->next;
delete head;
head = tmp;
}
tail = head; //tail = NULL;
}
};
class Stack { //스택클래스
public:
LinkedList stack;
public:
Stack() {};
void pop() {
stack.remove();
}
void push(int num) {
Node* new_node= new Node();
new_node->num = num;
new_node->next = NULL;
stack.insert(new_node);
}
int top() {
int val;
val = stack.top();
return val;
}
bool is_empty() {
if (stack.get_length() == 0) return true;
else return false;
}
int get_length() {
return stack.get_length();
}
void display() {
stack.print_list();
}
};
스택을 활용한 대표적인 문제는 바로 '괄호검사'이다.
문자열에서 ( { [ 등과 같은 열림괄호가 입력되면, 스택에 다 push를 하고, ] } ) 와같은 닫힌 괄호가 나오면, 스택에서 pop한 요소가 서로 맞는 괄호 인지 확인해주는 것이다.
아래의 소스코드는 위의 stack class의 멤버 함수로 추가해준 괄호검사 check 함수이다.
bool check(const char word[]) {
int len = strlen(word);
for (int i = 0; i < len; i++) {
if (word[i] == '(' || word[i] == '{' || word[i] == '[')
push(word[i]);
else if(word[i] ==')' || word[i]=='}' || word[i]==']') {
if (word[i] == ')') {
if (is_empty() || top() != '(') return false;
pop();
}
else if (word[i] == ']') {
if (is_empty() || top() != '[') return false;
pop();
}
else if (word[i] == '}') {
if (is_empty() || top() != '{') return false;
pop();
}
}
return true;
}
}
